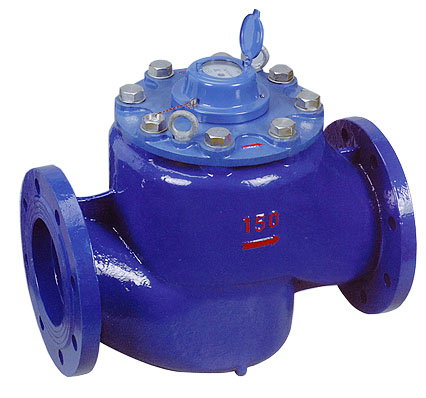

LCLC-80~150
Vertical Woltman Type Detachable Magnet-drive
Dry-Dial Cold Water Meter
Application: This range of water
meter is used to measure the total quantity of cold
potable water passing
through the
pipeline.
Feature:
Dry-dial, Magnet drive,
Vacuum sealed register ensures the dial kept free from
fog and keep the
reading clear in a long term service. Selected high quality
materials for steady & reliable
characteristic. Measuring accuracy conform to ISO 4064 Class B. Low
head loss. Register for
universal use within this range detachable without removing the
meter from the pipeline for a easy
maintenance and replacement.
Working
Condition:
Water temperature:≤50℃
Working pressure:≤1MPa
Compliance
With Standard: ISO 4064 Class B
Indicating
Error:
a) In the lower zone from
Qmin inclusive up to but excluding Qt is ±5%
b) In the upper zone from Qt inclusive up to and
including Qs is ±2%
Main
Technical Data:
Type
Meter Size
(mm)
Class
qs
Max
Flow
qp
Nominal
Flow
qt
Transitional
Flow
qmin
Min
Flow
Min Reading
Max. Reading
m3/h
m3
LCLC-80
80
B
80
40
8
1.2
0.01
9999999
LCLC-100
100
B
120
60
12
1.8
0.01
9999999
LCLC-150
150
B
300
150
30
4.5
0.01
9999999
Dimensions
And Weight:
Meter Size
mm
Length(L)
Height(H)
Connecting flange
Weight
kg
Outer Dia
Bolt circle dia
Connecting bolt dia
mm
D (mm)
D1(mm)
pcs
80
370
306
200
160
4-M16
27
100
370
336
220
180
8-M16
29
150
500
448
290
240
8-M20
80
Flow
Error Curve:
