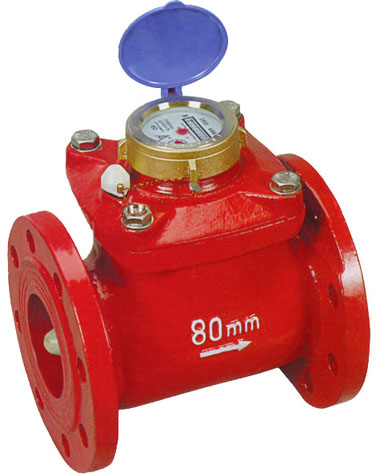

LXLCR-50~200 Horizontal Woltman Type Detachable
Magnet-drive Dry-Dial
Hot
Water Meter
Application: This range of water
meter is used to measure the total quantity of
hot water passing through the
pipeline.
Feature:
Dry-dial, Magnet drive,
Vacuum sealed register ensures the dial kept free from
fog and keep the
reading clear in a long term service. Selected high quality
materials for steady & reliable
characteristic. Measuring accuracy conform to ISO 4064. Low
head loss. Register for universal use
within this range detachable without removing the
meter from the pipeline for a easy maintenance
and replacement.
Working
Condition:
Water temperature:≤90℃
Working pressure:≤1MPa
Compliance
With Standard: ISO 4064 Class B
Indicating
Error:
a) In the lower zone from
Qmin inclusive up to but excluding Qt is ±5%
b) In the upper zone from Qt inclusive up to and
including Qs is ±2%
Main
Technical Data:
Type
Meter Size
(mm)
Class
qs
Max
Flow
qp
Nominal
Flow
qt
Transitional
Flow
qmin
Min
Flow
Min Reading
Max. Reading
m3/h
m3
LXLCR-50
15
A
30
15
4.5
1.2
0.01
999999
B
3
0.45
LXLCR-65
20
A
50
25
7.5
2
0.01
999999
B
5
0.75
LXLCR-80
25
A
80
40
12
3.2
0.01
999999
B
8
1.2
LXLCR-100
40
A
120
60
18
4.8
0.01
999999
B
12
1.8
LXLCR-125
50
A
200
100
30
8
0.01
999999
B
20
3
LXLCR-150
150
A
300
150
45
12
0.1
9999999
B
30
4.5
LXLCR-200
200
A
500
250
75
20
0.1
9999999
B
50
7.5

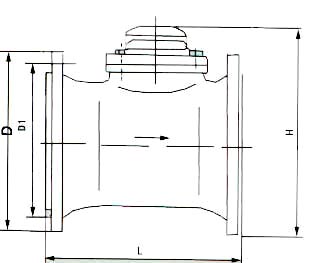

Dimensions
And Weight:
Meter Size
mm
Length(L)
Width(B)
Height(H)
Connecting flange
Weight
kg
Outer Dia
Bolt circle dia
Connecting bolt dia
mm
D (mm)
D1(mm)
pcs
50
200
175
250
165
125
4-M16
12
65
200
185
255
185
145
4-M16
13
80
225
200
265
195
160
8-M16
15
100
250
220
275
215
180
8-M16
19
125
250
245
285
245
210
8-M16
22
150
300
285
310
285
240
8-M20
28
200
350
345
370
340
295
8-M20
41

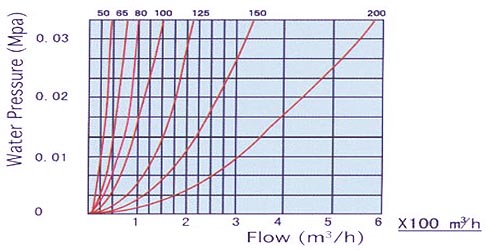

Head
Loss Curve:
Flow
Error Curve:
Sanlian
Water Meter Co., Ltd. Add: No. 16, Lane 72, Wenjiao
Road, Ningbo, China
Tel:
86-574-81802260
Postcode:
315020
E-mail:
watermeter@163.com
Contact:
Jason Zhang
LXLCR-50~200 Horizontal Woltman Type Detachable
